FEMALE SKYDRATE SYSTEM


The SKYDRATE System for Women is hands free, automatically collecting urine at 2.25 LPM, keeping the user dry and on-mission.


FEMALE CONTROL UNIT

ODT-225-F

The SKYDRATE Female Control unit.

The Control Unit pumps urine from the pad to the collection bag, providing non-invasive, automated bladder relief at 2.25 LPM.

  • Manual Button - Manually activates the liquid pump while pressed.

  • Battery Indicator - The 3 Lights provide the battery status (12 urinations per battery charge)


FEMALE PAD

The Female Pad inflates, sealing against the body to prevent leaks and create spaces between the pad and the pelvic floor, allowing urine to flow unimpeded to the pickup point.

  • Fabric Cover - Soft, non-woven, non-absorbent fabric.

  • Urine Sensors - Two salinity sensors detect the presence of urine and automatically activate the control unit

  • Pickup Point - Marked by a gold Dot, the pickup point is between the two sensors and should be the lowest point in the ejection seat.

PAD SIZES

There are 6 different pad sizes to accommodate a wide range of body types.

Size is determined by measuring the distance from the front pelvis, approximately 2" below the bikini line, between the legs, and up to the top of the gluteal cleft

PAD TYPES

There are two types of SKYDRATE Female pads to ensure compatibility with different ejection seats.

Seats with angles from 0 - 14 degrees (F-15, A-10, etc) use Pad Type A.

Seats with angles from 15 - 30 degrees (F16, F-35, etc) use Pad Type B.


HS-225-F-KIT

The SKYDRATE Female In-Line Switch Kit includes all components required to use the Female SKYDRATE System with the In-Line Hose Switch.


COLLECTION BAG

CB-12-3, CB-16-3

The Collection Bags are made from durable, medical-grade urethane. The bags have odor proof, liquid-blocking air vents that allow air to vent from the bag and prevent it from inflating

  • Disposable Bags - 1600ml Capacity with super absorbent polymer gel, with an emergency over-capacity limit of an additional 500ml.

  • Drainable Bag - 1200ml Capacity drainable bag for training and system cleaning.

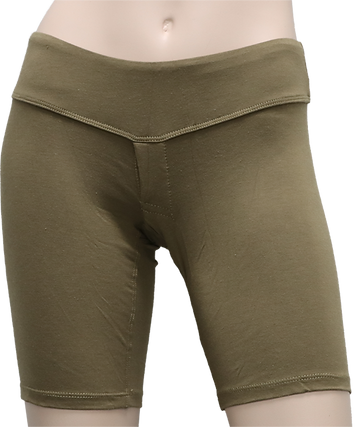

FEMALE UNDERGARMENT

The SKYDRATE Female Undergarment is designed to aid the Female Pad's performance by holding it snugly against the body.

Garments are performance-fit, lightweight and breathable, provide no-melt / no-drip protection, and are machine washable.



They come in 5 different sizes.
